Concrete Column Calculator

Find concrete volume for round columns, piers, and drilled shafts.

Reviewed: August 26, 2026

Calculate Concrete Column

For the Concrete Column Calculator, enter diameter, depth / height, waste allowance, and concrete price. It models one circular concrete placement as a cylinder, applies allowance, and reports cubic yards, bag equivalents, and optional ready-mix cost.

Construction measuring tools arranged beside a residential building project

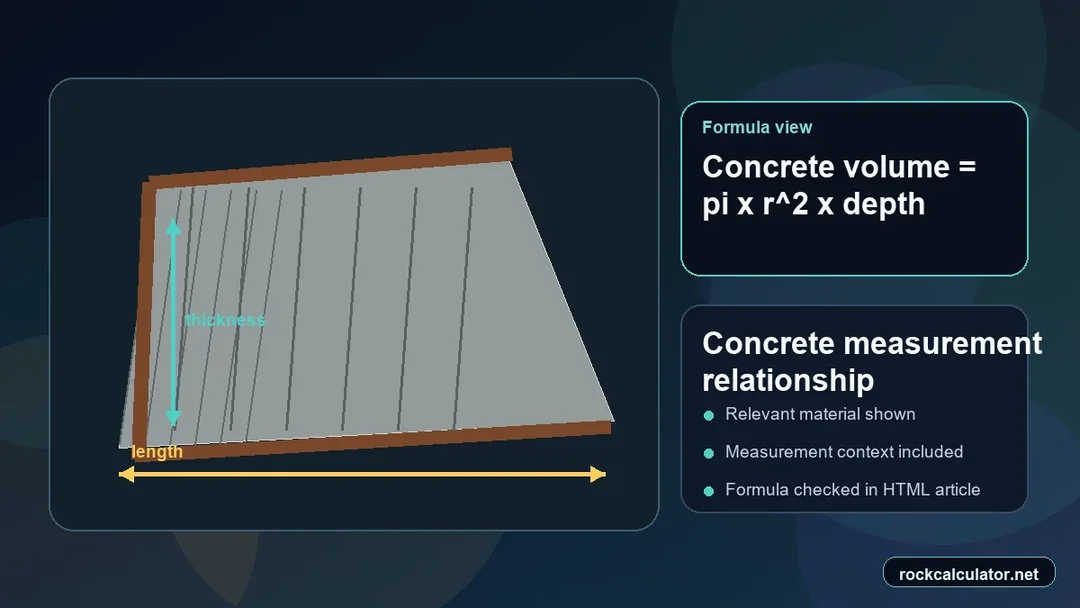

Formula used

Concrete volume = [π × (diameter ÷ 2)² × height ÷ 27] × (1 + waste ÷ 100), after converting diameter to feet

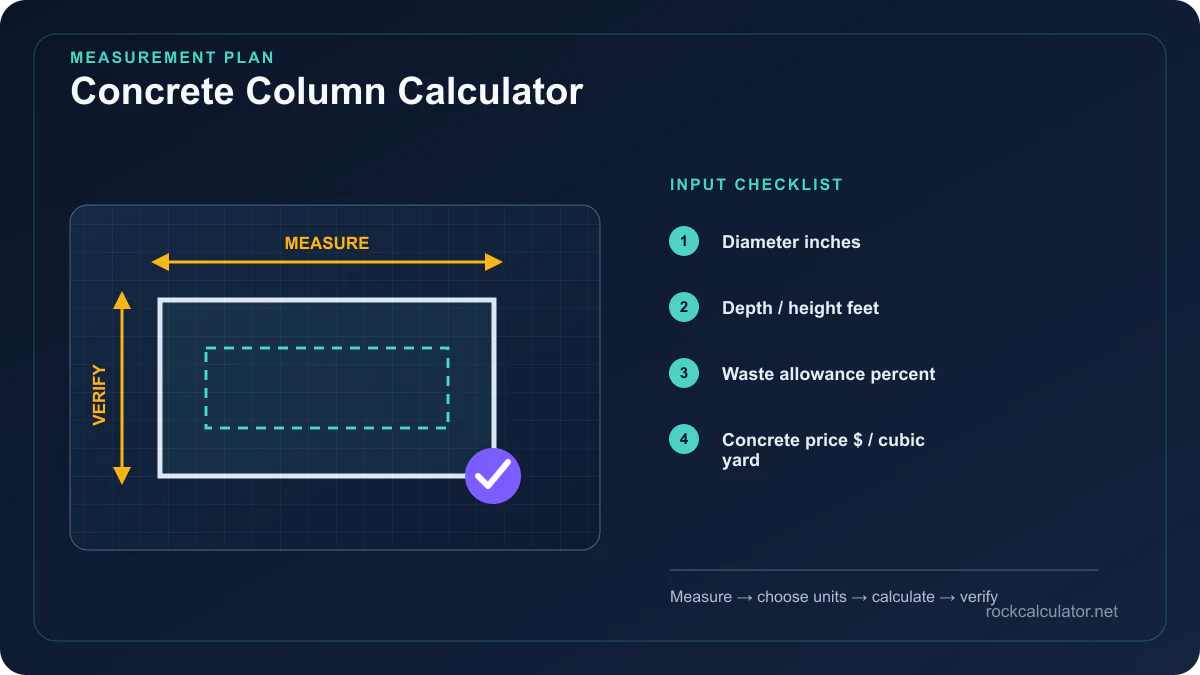

Concrete Column Calculator measurement plan showing Diameter inches, Depth / height feet, Waste allowance percent

Worked concrete column example

Concrete Column Calculator example: π × (16.4 in ÷ 12 ÷ 2)² × 3 ft = 4.4 ft³. Applying 10% gives 0.18 yd³; round any bag conversion to whole packages.

From calculated volume to an order

The cubic-yard result is suitable for a concrete takeoff; bag counts are a packaging conversion for small work, not a mix-design instruction.

Where a concrete takeoff can drift

Base enlargements, reinforcing congestion, displaced volume, form tolerances, and concrete left in the chute can alter the placed amount.

Questions specific to this calculation

Which diameter and height define the concrete column placement?

Use the actual inside diameter of the round form and the poured height. Multiply the result outside the tool when several columns share identical dimensions.
